Kitchen Hood
Wall Chimney Hood: A Smart Choice for Modern Kitchens
Aug
Cooking in Bangladeshi households involves rich spices, high-heat frying, and heavy oil usage. In modern apartment living across Dhaka and Chittagong, compact layouts often mean heat, smoke, and strong aromas quickly spread throughout the entire home. Installing a quality wall chimney hood directly addresses these everyday challenges by extracting airborne grease, smoke, and moisture right at the source.
TL;DR: Heavy mustard oil frying and aromatic spice blends require active smart kitchen ventilation rated at $1100 \text{ to } 1500 \text{ m}^3/\text{h}$ suction. Mounting an auto-clean wall chimney hood prevents airborne grease settlement on high-end cabinetry.
Technical Performance Breakdown: Resolving Ventilation and Exhaust Intent
High-heat preparation in South Asian culinary routines generates micro-particles of suspended fat mixed with steam and nitrogen dioxide. A dedicated wall chimney hood intercepts these pollutants before they migrate into adjacent dining or living zones.
Motor Suction and Airflow Dynamics
Wall chimney hood Ventilation performance is measured in cubic meters per hour ($\text{m}^3/\text{h}$). Compact kitchens under $80 \text{ sq. ft.}$ require a baseline rate of $800 \text{ to } 1000 \text{ m}^3/\text{h}$, whereas typical urban layouts ($100 \text{ to } 160 \text{ sq. ft.}$) require $1200 \text{ to } 1500 \text{ m}^3/\text{h}$ to maintain proper air turnover rates.
$$\text{Required Suction Capacity } (\text{m}^3/\text{h}) = \text{Kitchen Volume } (\text{m}^3) \times 12 \text{ Air Changes per Hour}$$
For an apartment kitchen measuring $3 \text{m} \times 4 \text{m} \times 2.8 \text{m}$ (Volume = $33.6 \text{ m}^3$), the absolute minimum operating suction capacity needed to clear dense frying vapor is $403.2 \text{ m}^3/\text{h}$. Accounting for duct resistance and ninety-degree elbow friction loss, an $1100\text{–}1300 \text{ m}^3/\text{h}$ chimney ensures optimal extraction.
Core Filtration Architectures: Baffle vs. Filterless
- Stainless Steel Baffle Filters: Constructed with overlapping curved metallic slats. As vapor-laden air passes through the curves, rapid changes in direction force heavy oil particles to condense onto the baffle surface and drain into an oil collector cup.
- Filterless Centrifugal Systems: Feature an offset, high-speed motor impeller that hurls oil droplets outward via centrifugal force. The oil drops down smooth internal walls directly into a rear tray. This design removes internal filter obstruction, maximizing airflow velocity over time.

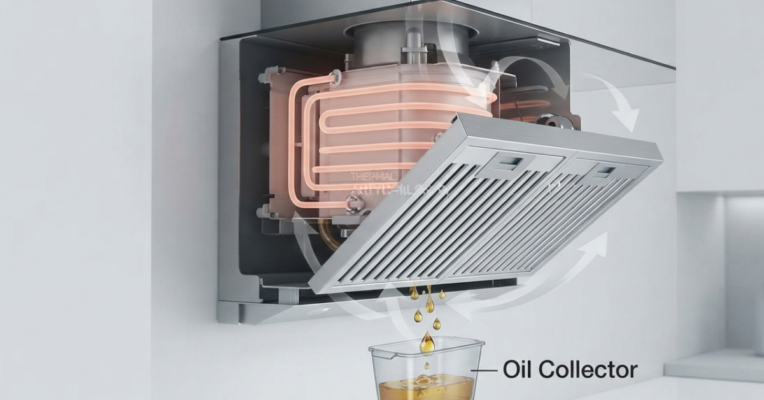

- Thermal Auto-Clean Technology: Integrated heating elements wrapped around the motor housing warm up to $75^\circ\text{C}\text{–}80^\circ\text{C}$ during a $10\text{-minute}$ automated cycle. The heat liquefies viscous grease build-up inside the housing, draining it into an accessible reservoir.
Market Landscape: Kitchen Chimney Price in BD (2026 Standards)
Wall chimney hood Navigating the local market requires balancing suction capacity, motor construction (pure copper windings vs. aluminum alloys), control interface types, and brand warranties.
| Chimney Category | Suction Rating (m3/h) | Core Hardware Features | Ideal Room Scale | Estimated Market Price (BDT) |
| Basic Mechanical Baffle Hood | $800\text{–}1000$ | 3-speed push button, dual copper motor, removable steel baffle plates | Compact (Under $80 \text{ sq. ft.}$) | $\text{৳}12,000\text{–}\text{৳}18,000$ |
| Auto-Clean Curved Glass Hood | $1100\text{–}1300$ | Touch panel, thermal heating auto-clean element, tempered glass canopy, LED lamps | Medium ($80\text{–}140 \text{ sq. ft.}$) | $\text{৳}20,000\text{–}\text{৳}35,000$ |
| Filterless Motion-Sensor Hood | $1200\text{–}1500+$ | Hand gesture controls, ultra-silent sealed motor, blow-off oil separator, digital display | Large / Open Plan ($140+ \text{ sq. ft.}$) | $\text{৳}32,000\text{–}\text{৳}50,000+$ |
Why Modern Kitchen Organization Matters in Bangladesh
Wall chimney hood Modern urban apartments often feature compact kitchen layouts that require careful space management. Cooking daily meals involves multiple spices, heavy utensils, and intense heat, which can easily lead to a chaotic workspace if items are disorganized.
Essential Accessories for a Functional Kitchen
A high-performance exhaust system functions best when paired with organized cabinetry. Combining active extraction with ergonomic hardware creates a clean, streamlined cooking space.
Cabinet & Pull-Out Systems
A soft-close pull out basket for kitchen cabinets maximizes deep storage space, making heavy pots and spice jars easily accessible. These smooth-sliding mechanisms eliminate the hassle of reaching into dark cabinet corners, keeping essentials organized and within reach during busy cooking routines. Specialized 3-shelf pull-out units keep narrow $150\text{mm}\text{–}200\text{mm}$ cabinet cavities fully functional.
Drawer Baskets & Storage Organizers
Installing specialized kitchen cabinet accessories inside drawers keeps cutlery, knives, and small tools neatly sorted. Partitioned tray inserts prevent clutter from building up, protecting delicate utensils from wear and enabling quick access during daily meal prep. Premium stainless steel thali plate basket setups hold heavy dining plates securely upright.
Wall-Mounted Racks & Shelving
Utilizing vertical wall space keeps frequently used items off the countertop. A high-grade stainless steel kitchen rack provides reliable support for spice containers, ladles, and chopping boards, keeping counter space clear for food preparation. For specialized items, installing a dedicated hanging knife holder or a multi-tier spice bottle rack restores surface area around cooking hobs.
Sink & Dish Management Solutions
Over-the-sink drying racks and built-in dish organizers keep washing areas clean and dry. Efficient drainage systems prevent water pooling on granite or tile surfaces, protecting counter edges from water damage and keeping dishware hygienically separated. Mounting a dedicated glass plate rack with drip tray above a stainless steel kitchen sink ensures water drips directly into the drain rather than pooling on countertops.
Engineering Layout Matrix: Accessory Integration
| Accessory Type | Best Architectural Placement | Structural Load Rating | Primary Ergonomic Benefit |
| Pull-Out Basket | Deep base cabinets ($500\text{–}600\text{mm}$) | $25\text{–}40 \text{ kg}$ per drawer | Full drawer visibility and access without stooping |
| Wall-Mounted Rack | Backsplash vertical tile zone | $10\text{–}15 \text{ kg}$ total | Clears prep countertops around cooktops |
| Drawer Organizer | Top shallow cabinet drawers ($100\text{–}150\text{mm}$) | $10\text{–}15 \text{ kg}$ internal | Prevents utensil clutter and blade wear |
| Wall Chimney Hood | Centered $65\text{–}75\text{cm}$ above hobs | Wall expansion anchor bolts | Direct capture of cooking smoke and oils |
| Corner Carousel | Dead corner base cabinets ($900\text{mm} \times 900\text{mm}$) | $20\text{–}30 \text{ kg}$ revolving | Converts dead corner space into functional storage |
Smart Storage Ideas for Small Kitchens
Small apartment kitchens require smart spatial solutions to keep surfaces clutter-free. Utilizing dead space around corner cabinets with a 360-degree revolving basket or tall larder pull-outs transforms underutilized areas into high-capacity storage hubs.
Modular vertical shelving units and hanging rail systems bring everyday items onto the wall, reserving valuable counter space for chopping and prepping food. Selecting versatile kitchen storage solutions helps maximize functionality without making the room feel cramped or cluttered.
Maximizing Corner Cabinets
Standard L-shaped and U-shaped kitchen layouts often create awkward, unreachable corner zones. Instead of leaving these spaces empty, consider these structural retrofits:
- Corner Carousel Trays: Installing a 180-degree revolving basket or a full-rotation unit allows stored items to swing outward into full view with a gentle turn.
- Magic Corner Units: Mechanized dual-frame trays slide out when the door opens, pulling concealed rear baskets into the light.
Vertical Larder Systems
Tall floor-to-ceiling cabinets benefit from high-capacity hardware. Installing a six-layer tall unit basket or a twelve-layer larder basket provides framed shelf storage that handles dry goods, spice jars, and pantry items in one organized column.
How to Choose Durable Kitchen Accessories
Selecting long-lasting kitchen fittings requires paying attention to core materials, construction standards, and load capacity.
Material Quality: Grade 304 Stainless Steel vs. 201 Alloys
Humid tropical environments and heavy steam call for corrosion-resistant metals. Grade 304 stainless steel contains $18\%$ chromium and $8\%$ nickel, forming a protective surface layer that resists rust from water, ambient humidity, and acidic food spills. Lower-cost Grade 201 alloys lack adequate nickel content and often display surface rust within months when exposed to persistent steam.
Weight Capacity and Slide Mechanics
Always evaluate dynamic weight tolerances before purchasing hardware:
- Under-Mount Soft-Close Runners: Designed for smooth operation under heavy loads, supporting up to $35\text{–}45 \text{ kg}$ without sagging.
- Ball-Bearing Side Slides: Budget-friendly option rated for $20\text{–}25 \text{ kg}$. Avoid using these for heavy cast-iron cookware or large rice containers.
Hardware Coatings and Glides
Look for electro-plated, chrome-finished, or powder-coated surfaces. High-grade finishes withstand high-frequency cleaning without flaking or scratching.
Step-by-Step Installation Blueprint: Wall Chimney Hoods
A high-performance chimney hood can lose up to $40\%$ of its effective suction if installed incorrectly. Follow this technical blueprint to ensure maximum airflow and quiet operation.
- Measure Mounting Clearance: Position the bottom edge of the hood $65\text{cm} \text{ to } 75\text{cm}$ ($26\text{–}30 \text{ inches}$) above the gas burner top. Mounting higher than $75\text{cm}$ allows room currents to disperse oil fumes before they reach the suction inlet; mounting below $65\text{cm}$ poses a thermal hazard.
- Mount Heavy-Duty Wall Brackets: Locate solid brick or concrete support structures. Avoid fixing heavy hoods exclusively to decorative plaster panels without internal wall reinforcement. Drive expansion anchor bolts through a heavy-duty steel mounting plate.
- Install Exhaust Ducting: Attach a $150\text{mm}$ ($6\text{–}\text{inch}$) semi-rigid flexible aluminum or smooth PVC exhaust pipe to the top outlet collar. Keep the duct run short ($< 3 \text{ meters}$) and limit bends to no more than two $90^\circ$ turns. Sharp bends create backpressure, raising motor noise and reducing airflow.
- Seal Wall Outlets: Route the ducting to an exterior wall vent fitting equipped with a gravity flap louver. Seal wall gaps with exterior-grade weather-resistant silicone to keep rain, insects, and humidity out.
- Connect Electrical Power & Calibrate: Plug the unit into a grounded $16\text{A}$ electrical outlet with surge protection. Run the touch interface, test the motion gesture sensors, and trigger a brief thermal auto-clean cycle to confirm internal connections.
Latest Trends in Modular Kitchen Design in BD
Current home trends emphasize sleek, clutter-free aesthetics paired with highly functional internal storage. The modern modular kitchen design bd market favors handleless cabinet fronts, concealed storage baskets, and integrated appliance layouts. Homeowners increasingly choose subtle matte finishes paired with robust stainless steel accents.
Efficient exhaust systems and smart lighting under wall units combine practical function with modern interior styling, making kitchens look open, warm, and inviting.
Design Tip: Integrate under-cabinet LED strip lights directly below your wall-mounted storage cabinets. Task lighting illuminates prep zones and cooking hobs, highlighting high-gloss backsplashes while improving visibility for precision knife work.
Common Mistakes to Avoid When Buying Kitchen Fittings
- Ignoring Exact Cabinet Dimensions: Purchasing organizers without precise interior measurements often leads to ill-fitting hardware and wasted storage space. Always measure internal cabinet width, depth, and height—not just exterior panel sizes.
- Prioritizing Price Over Material Grade: Low-cost fittings made of inferior metals tend to rust quickly when exposed to moisture and cooking steam. Investing in Grade 304 stainless steel pays off in long-term performance.
- Overloading Baskets Beyond Capacity: Exceeding weight recommendations damages slide rails, leading to misaligned drawers and sticky mechanisms. Distribute heavy items across multiple pull-out storage levels.
- Selecting Incompatible Venting Systems: Buying a vent unit without verifying your layout’s ducting path or wall capacity compromises ventilation efficiency. Ductless carbon filter units suit rental units, whereas ducted systems work best for high-heat Bangladeshi cooking.
- Skipping Professional Installation: Incorrectly fitted runners or loose wall mountings cause premature wear and potential safety risks over time. Aligning drawer slides within a $1\text{mm}$ tolerance ensures smooth, whisper-quiet operation.
A well-organized kitchen makes everyday cooking easier, cleaner, and far more enjoyable. Choosing quality accessories and a reliable wall chimney hood ensures long-lasting performance while helping you make the most of your space.
-
